Single port power management units that allow to control, restart and cycle the power supply to any connected devices remotely

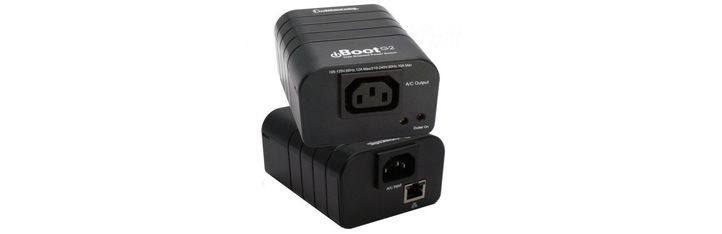

The iBoot Single Port Web Power Switch is a 10/100 Ethernet network attached, IP addressed, web-controlled AC power switch. Anyone with a web browser can access the iBoot to perform power on, off or reboot (timed power shutdown). The iBoot Web Power Switch is password protected for security. It uses international standard IEC320 connections and is autosensing for worldwide use. Line cord and output cord are included. The iBoot handles circuits up to 12 Amps (10 Amps at 230VAC). The unique Auto-Ping feature allows the iBoot to monitor any IP device on the network and take automatic action whenever the device is down. Ideal for automatically testing internet connections. The Heartbeat Detect feature allows the iBoot to monitor any server or PC running either the free Heartbeat Generator Program, or heartbeats integrated into your custom software. Ideal for verifying that specific PCs or Servers are running properly.

iBoot-G2 Features

• Access from any Network point – No field trips required for Reboot. Save time and money by eliminating service calls and reducing downtime to a minimum.
• Web Control – No special software required. Works with any forms capable browser. Easy Web Administration for all configuration.
• Dual Password Protected – Separate user and administrator passwords. Deploy iBoots throughout your organization.
• IP Addressed, 10/100Base-T – Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
• Automatic Reboot Operation – Auto-Ping and Heartbeat Detector. Automatic Operation for crashed devices. Auto-Ping pings device while heartbeat listens for periodic message. Complete control over frequency and timers. Developer Assistance and software tools are free.
• Direct TCP and Software Control – Control iBoot directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot control program to call power control from any network management system. IPSentry WhatsUp Gold, etc.
• 110/220 VAC Operation – Auto ranging power input. Deploy iBoot anywhere in the world. iBoot uses IEC320 Connectors and includes line and extension cords.
• 12 Amp Switching – Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC
• iBoot Control Center Software – Control an unlimited number of iBoots from one software application. Group iBoots for simultaneous actions. Schedule time of day activities like reboot or shutdown every night.
• iBoot-G2+ Features

  The iBoot-G2+ has additional functionality and also adds expansion capabilities.It has all the features of the iBoot-G2 with the addition of:

  • Expansion – Control up to two additional outlets. iBoot-Exp units can be up to 300m from the iBoot-G2
  • General Purpose I/O – Independently monitored and controlled
  • Heartbeat Monitor – Automatic Failure Detection
  • USB Port – Direct PC communication for Serial Command Line Interface Access
  • Manual Switch Triggers – For the Mains Outlet
  • Graceful Shutdown
  • SNMP Management

  iBoot Features

  • Access from any Network point – No field trips required for Reboot. Save time and money by eliminating service calls and reducing downtime to a minimum.
  • Web Control – No special software required. Works with any forms capable browser. Easy Web Administration for all configuration.
  • Dual Password Protected – Separate user and administrator passwords. Deploy iBoots throughout your organization.
  • IP Addressed, 10/100Base-T – Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
  • Automatic Reboot Operation – Auto-Ping and Heartbeat Detector. Automatic Operation for crashed devices. Auto-Ping pings device while heartbeat listens for periodic message. Complete control over frequency and timers. Developer Assistance and software tools are free.
  • Direct TCP and Software Control – Control iBoot directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot control program to call power control from any network management system. IPSentry WhatsUp Gold, etc.
  • Built in Hub – Reduce cabling and simplify installation. One cable from you network closet serves both the iBoot and server, kiosk, etc. Auto-sensing for uplink/downlink eliminates the need for expensive crossover cables.
