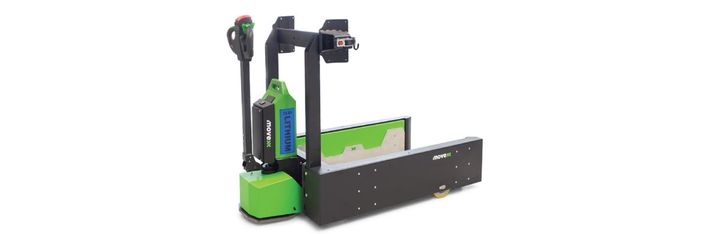

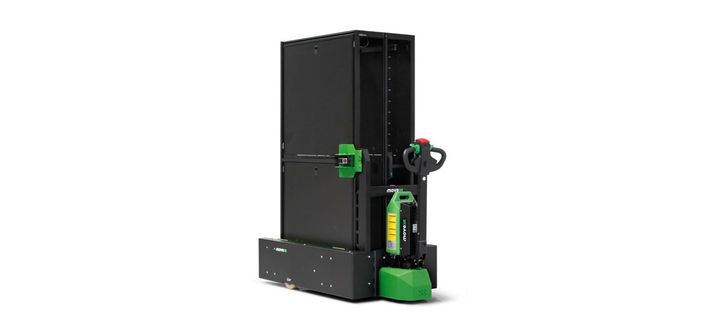

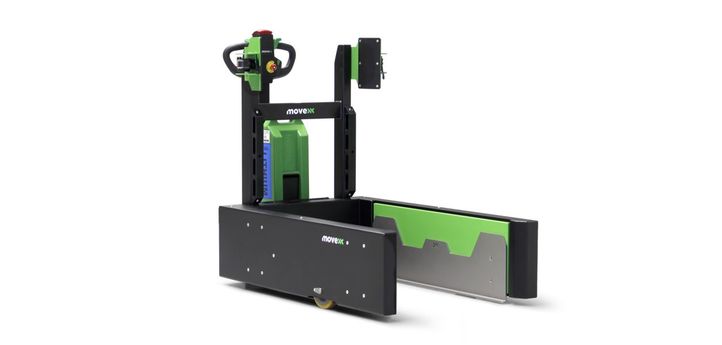

The Movexx TT1500-M-SR easily moves and relocates your fully equipped racks in the data centre

The Movexx Rack Mover TT1500-M-SR is a server rack tug used for the safe, ergonomic and efficient movement of server racks in data centres. With a capacity of up to 1.500 kg, this tug is highly suitable for daily operations in the data centre, even within small spaces. Only one operator is required for the safe transportation of server racks over both short and long distances. Physical strain, the high risk of accidents, long term sickness, and high damage cost can be reduced significantly, which is music to the ears of anyone operating a data centre.

Safety features of the Movexx Rack Mover TT1500-M-SR

The Movexx Rack Mover TT1500-M-SR features an effective parking brake to hold the tug safely on ramps or uneven grounds. A robust metal cowling protects the drive unit and components, while the low-profile chassis protects the operator’s feet. A long, low mounted tiller arm places the operator at a safe yet comfortable working distance from the truck. The anti-tilting safety support with automatic ratchet ensures the stability while lifting and driving.

Maximum rack handling performance by minimising the operator’s physical input

The TT1500-M-SR has been specially designed for handling server racks without the need to have the rack castor wheels in motion, while handling server racks off and onto a trailer, on dock levellers and industrial flooring. Thanks to its powered traction and lift, the operator’s physical input is minimised. Equipped with a 0.7 kW drive motor, the TT1500-M-SR offers a highly cost-effective and productive solution for short and long-distance transfer of loads up to 1500 kg. Its compactness guarantees maximum manoeuvrability when operating inside confined spaces.

Available for heavy duty rack moving tasks in the data centre at any time

The compact and exchangeable LiFePo4 batteries allows opportunity charging via the external charger at any convenient power point for optimum uptime. All controls located on the ergonomic tiller head. The dual butterfly levers for traction and the lifting function can be easily operated by either hand to ensure precise operation.

Reliability thanks to reinforced superstructure for safe, efficient handling of racks up to 1500 kg

The durable drive unit of the TT1500-M-SR delivers consistent high performance and reliability. The robust chassis has a reinforced superstructure for safe, efficient handling of racks up to 1500 kg. The automatic lift stop at maximum lift height improves the quality and durability of components.

Reduced service costs

The DC drive motor optimises uptime between routine service periods and reduces service costs, while a reliable, energy efficient controller delivers smooth handling performance.

Features and highlights of the Movexx Rack Mover TT1500-M-SR

Traction and lift system

• 0,7 kw DC drive motor
• Adjustable parameters: travel speed up to 4,5 km/h & acceleration
• Electrical lifting & lowering.

Drive unit

• Robust metal cover protects drive system and components
• Low chassis skirt protects operator’s feet
• Long, low mounted tiller ensures operator is safe yet comfortable distance from the truck
• Rugged, reinforced superstructure provides safe handling of loads up to 1500 kg.

Braking system

• Highly efficient electromagnetic brake applied by moving the tiller head fully up position
• Automatic braking on releasing traction switch or reversing direction
• Truck slows before coming to a stop, remaining under total control at all times
• Proofed emergency button on tiller head.

Battery

• Exchangeable battery system ensures an optimal running time
• LiFePo4 battery technology with integrated Battery Management System
• Average 8-hours drive time on single charge
• Less than 4-hours charging.

External charger

• Enables opportunity charging at any convenient power point
• Easy plug and fast charging

Controls & Display

• Traction and lift controls grouped on ergonomic tiller head
• Dual traction switch control levers for use with either hand
• Body protection switch on tiller head stops truck when actuated
• Reliable and precise battery indicator.

Superstructure

• With integrated electric lifting system with hold-to-run function
• Heavy duty polyurethane load wheels
• The telescopic steel covers serve the purpose of protecting the lift systems and reduced risk of crushing.
